SATAjet 1000 K Pressure Spray Gun (HVLP or RP) (132092 / 153494)

Name: SATAjet 1000 K Pressure Spray Gun (HVLP or RP) (132092 / 153494)
SKU: 132092 / 153494
Availability: InStock

Nozzle Size

RP / HVLP

Our Price

£406.81

SKU: 132092 / 153494 Categories: Industrial Spray Guns, Pressure Spray Guns, Spray Guns & Parts Tags: 1000, 1000 k, 1000k, SATA, SATA 1000, SATA 1000 K, SATA Pressure Gun, SATA Spray Gun, SATA Spraygun, spray gun

Our Price: £ 406.81

Trade: £ 518.00

VAT/TAX: £81.36

Total: £488.17

Quantity

View Parts

Compare

Description
Additional information

Description

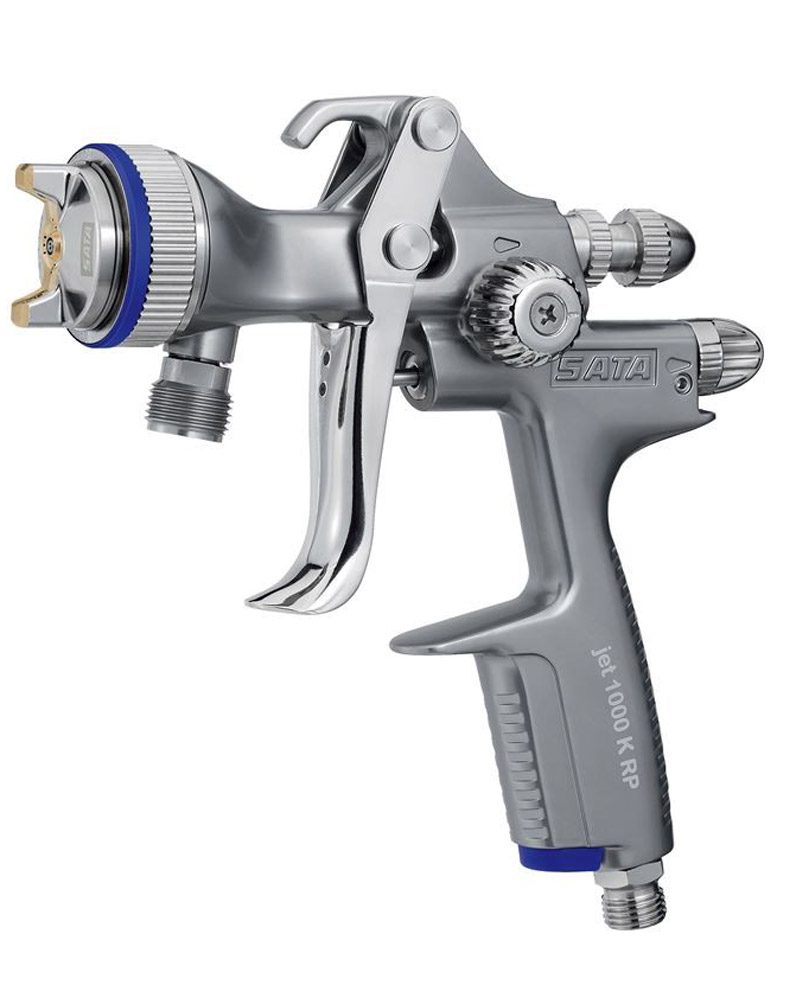

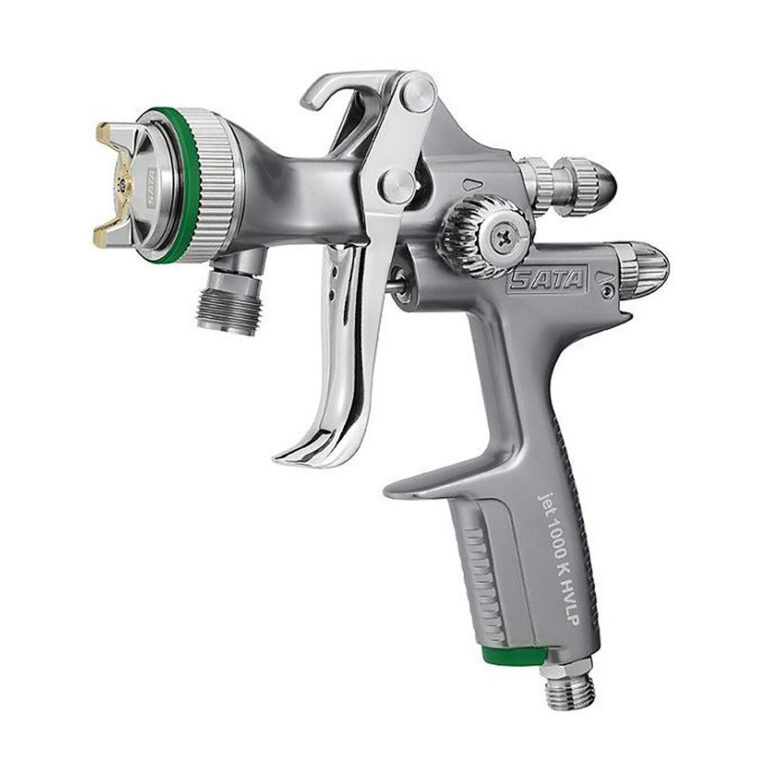

SATAjet 1000 K Pressure Spray Gun (HVLP or RP) (132092 / 153494)

Compact. Light. All-round talent.

The compact and lightweight SATAjet 1000 K is the all-rounder among spray guns with material supply from pressure tanks or via double diaphragm pumps. Thanks to the wide range of nozzles, a wide variety of materials such as low-viscosity wood stains, clear coats, textured coats and glazes as well as adhesives and other high-viscosity materials can be excellently processed with this gun.

This Satajet 1000 K is the lightweight among the pressure fed spray guns. In combination with paint pressure tanks or material feeder pumps, they are a powerful application tool.

The small and lightweight SATAjet 1000 K supplied from pressure pots or double diaphragm pumps is an multi purpose spray gun. Due to its large range of available nozzle sizes, this pressure fed spray gun is perfectly suitable for the application of various materials: from thin wood stain, clearcoat, textured paint and glaze to glue and other thixotropic materials. Extensions which are available in various versions and sizes allow perfect coating of areas difficult to access.

The lightweight among the pressure fed spray guns
In combination with paint pressure tanks or material feeder pumps, they are a powerful application tool
The material supply can be connected via material tube, teflon ball valve or material quick coupling

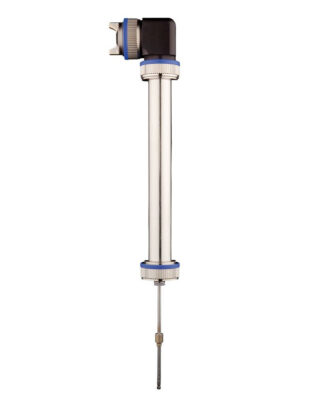

Extensions for special applications, such as internal coating of tubes or radiator painting, various extensions ranging from 20 to 300 cm (8 to 120 inches) are available

The material supply can be connected via material tube, Teflon ball valve or material quick coupling
Extensions (for gravity cup and pressure fed spray guns). For special applications, such as internal coating of tubes or radiator painting, various extensions ranging from 20 to 300 cm (8 to 120 inches) are available:

with 90° angular head
with standard nozzle for regular spray pattern
with plate-shaped internal mixing nozzle for 360° radial spraying
with 30° diagonal radiator spray nozzle

Various fluid tip sizes are available from 0.8- 4.0.

5.0 set up also available as an extra please call our sales team for more information.

Product Benefits

Can be used for processing a wide variety of materials – water or solvent-based
Comfortable, ergonomically well balanced control elements, such as material flow control, the thumb adjustable round/flat spray control and integrated air micrometer
QC thread for easy and quick air nozzle change with only 1.5 turns
Special air guides on the horns of the air cap prevent deposits caused by overspray
With extensions in various designs, even hard-to-reach areas can be coated perfectly

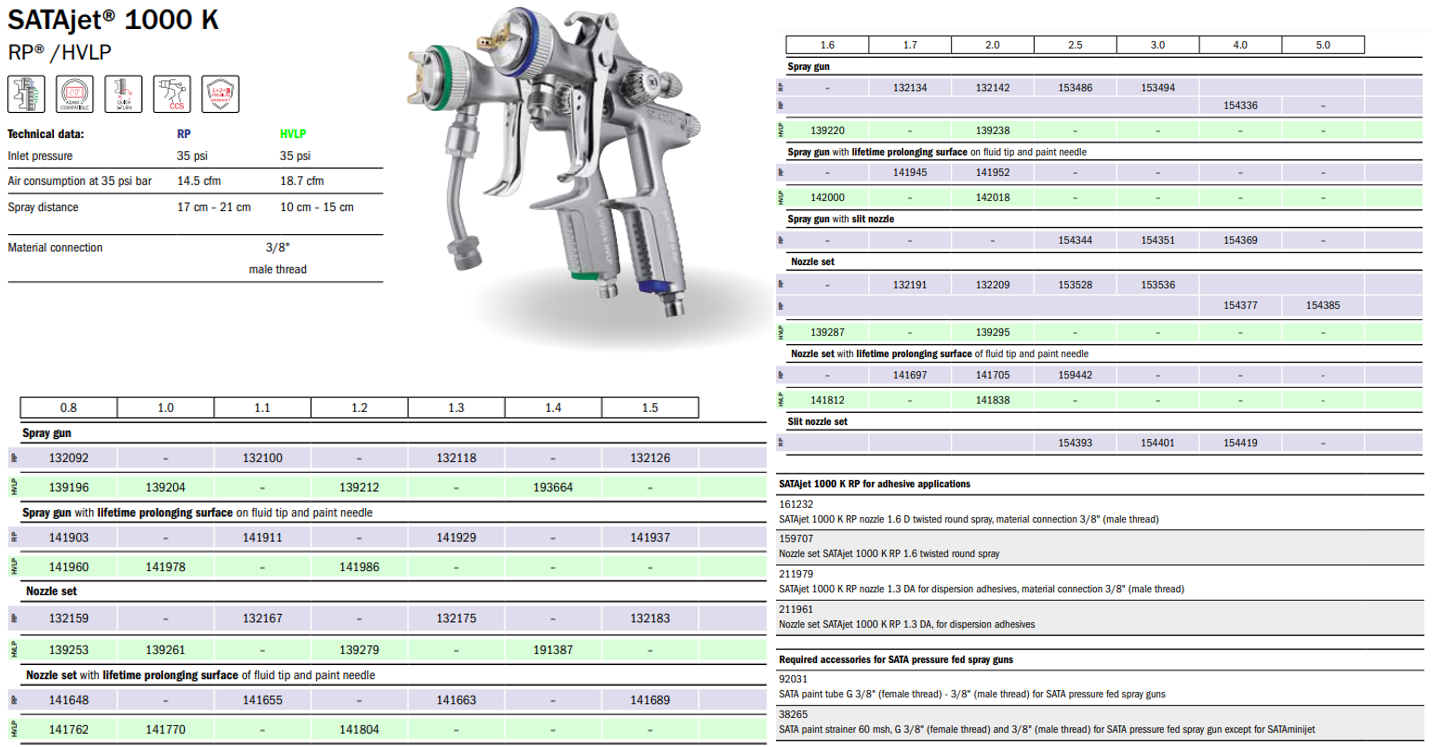

Specifications

Air consumption: 410 Nl/min (14.5 cfm)
Recommended inlet pressure: 2.5 bar (36.3 psi)
Maximum operating temperature: 50
Maximum operating overpressure: 10 bar (145 psi)
Weight: 483g
Air inlet: G 1/4 ext.
Size: 0.8 – 5.0

Additional information

Weight	1 kg
Nozzle Size	0.8mm, 0.8mm with lifetime prolonging surface on fluid tip and paint needle, 1.0mm, 1.0mm with lifetime prolonging surface on fluid tip and paint needle, 1.1mm, 1.1mm with lifetime prolonging surface on fluid tip and paint needle, 1.2mm, 1.2mm with lifetime prolonging surface on fluid tip and paint needle, 1.3mm, 1.3mm with lifetime prolonging surface on fluid tip and paint needle, 1.4mm, 1.5mm, 1.5mm with lifetime prolonging surface on fluid tip and paint needle, 1.6mm, 1.6mm with lifetime prolonging surface on fluid tip and paint needle, 1.7mm, 1.7mm with lifetime prolonging surface on fluid tip and paint needle, 2.0mm, 2.0mm with lifetime prolonging surface on fluid tip and paint needle, 2.5mm, 3.0mm, 4.0mm
RP / HVLP	RP, HVLP
