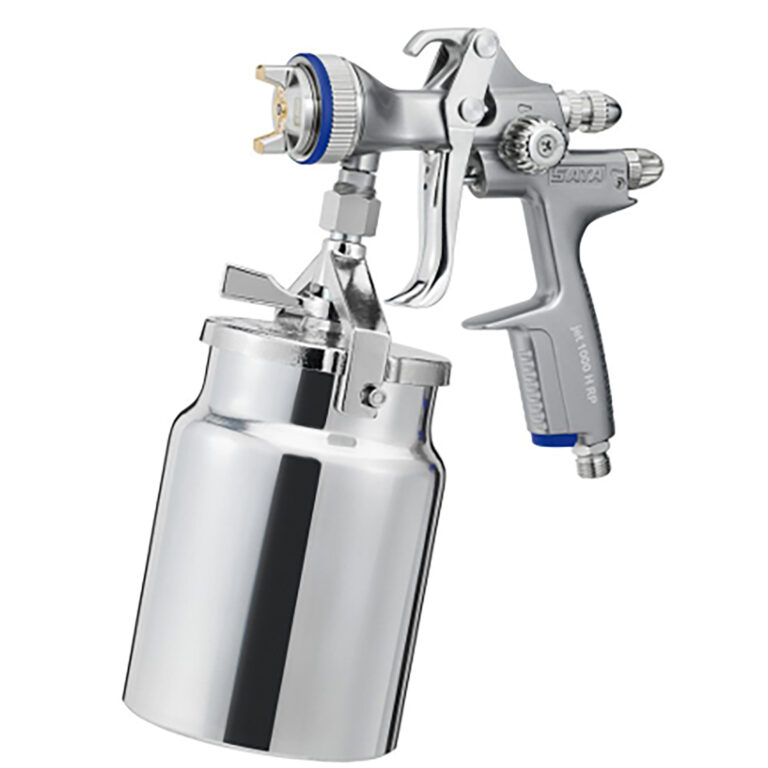

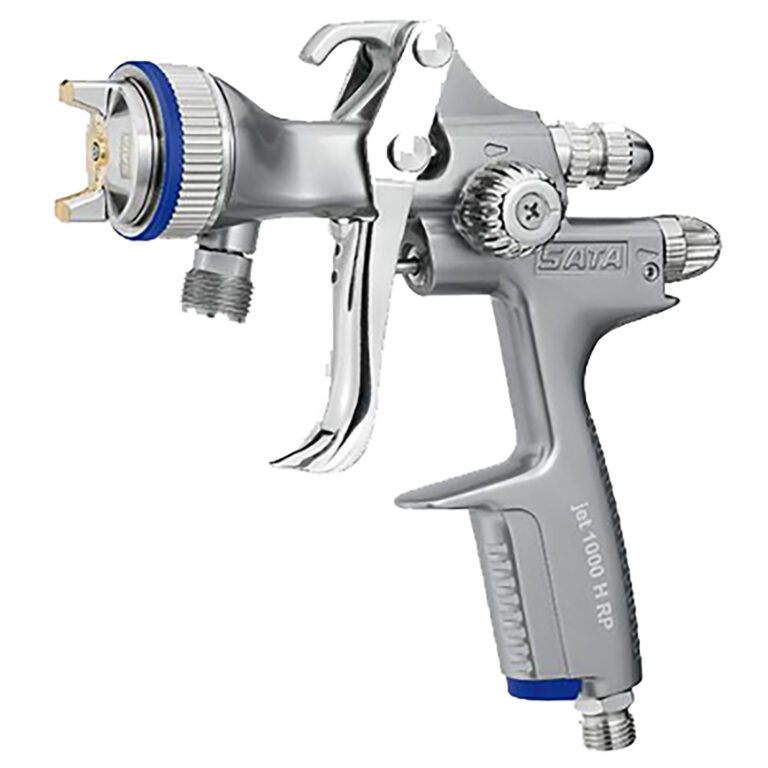

SATAjet 1000 H RP Suction Spray Gun with Aluminium Siphon Cup (without swivel joint) (151226 / 161034)
SATAjet 1000 H Suction Spray Gun is a Clever design with high end latest performance. Versatile. Robust. Durable.
The SATAjet 1000 H RP is the all-round spray gun for craft and industry in the suction cup version.
Product Benefits
With 1 litre aluminum suction cup
Suitable for processing solvent-based materials

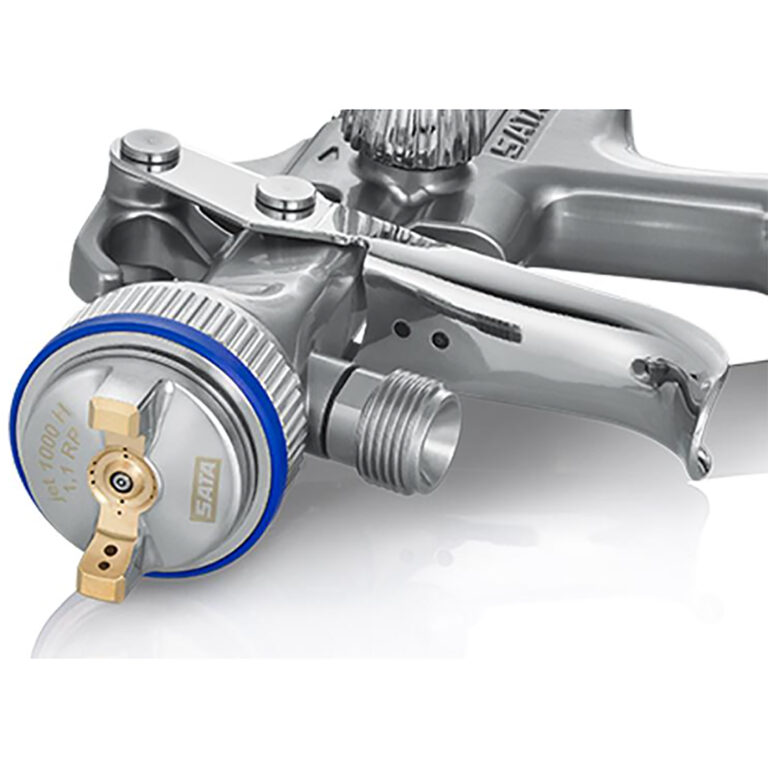

QC thread for easy and quick air nozzle change with only 1.5 turns
Easy to clean and corrosion-resistant surface
Robust and very durable
Suitable for the application of both waterborne and solvent-borne materials.
Comfortable, ergonomically balanced handling of the control elements, such as material flow control, the thumb adjustable round/flat spray control and integrated air micrometre
Individual marking of the spray gun with coloured CCS clips
Green or blue coloured identification rings on air cap to denote HVLP and RP technology
Technical Specifications for Satajet 1000
Inlet pressure: 2.0bar (22.0psi)
Air consumption: 275 Nl/min (9.7cfm)
Spray distance: 18-23cm (7-9 inches)
Available Fluid Tips:
1.3
1.6
1.8
2.0
Air Consumption
275.0 NI/min
Max. Inlet Air Pressure
10.0 bar
Recommended Air Inlet Pressure
2.0 bar
Recommended Spraying Distance
17 – 21cm
Cup Connection Type
3/8″ (male thread)
Nozzle Sizes
1.3 / 1.6 / 1.8 / 2.0
Nozzle Technology
RP
Colour Code System (CCS)
✓
Quick Change
✓
SATA adam Compatibility
✓
Premium Warranty Capable
✓
Two paths to the perfect result: HVLP and RP
HVLP: Extra Economical – HVLP paint spray guns achieve particularly high transfer rates with their low-pressure technology.
RP: Extra Fast – RP spray guns stand for maximum working speed with optimized high-pressure technology and low overspray.
Both variants can be used very flexibly, meet the highest demands on the painting result and clearly exceed the transfer rates of 65 % required by the VOC directive.
