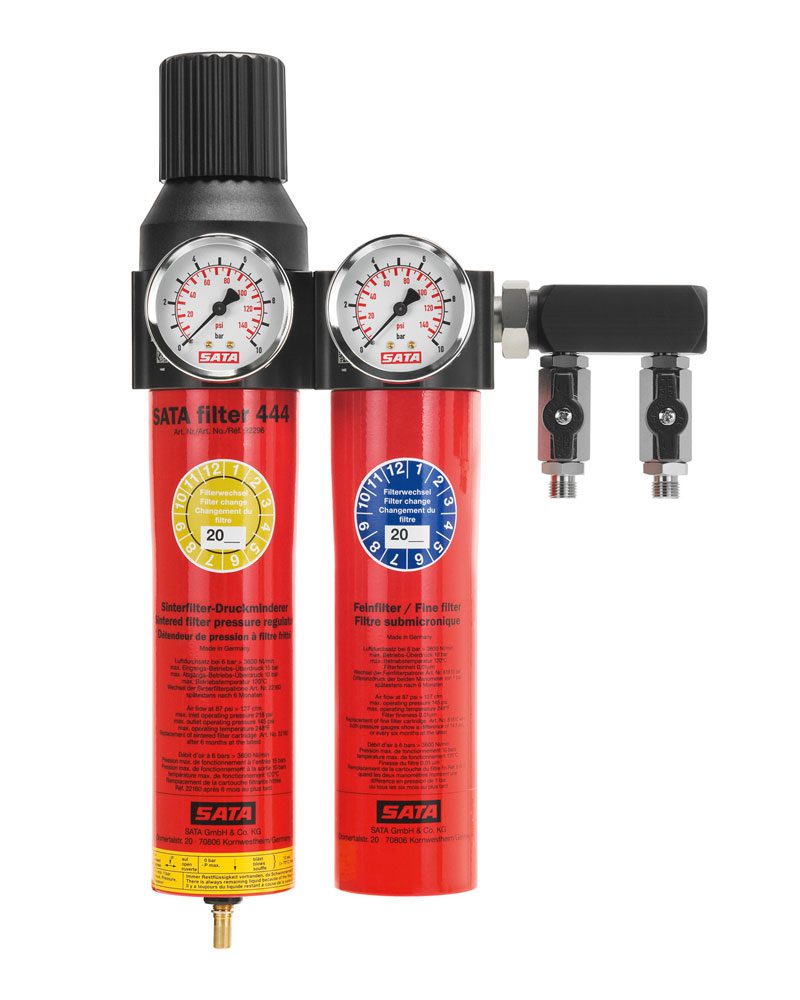

SATA 0/444 Combi Fine Filter Unit with Two Air Outlets (92296)
The microfiber fine filter filtrates particles of 0.01 micron size, ensures a filtration degree of 99.998% (100 % technically clean air) and thus prevents bad paint jobs and expensive redoes
The saturation degree of the fine filter can be read at the dual gauge
Very high air flow: 3,600 Nl/min at 6 bars (130cfm at 90psi)
The cyclone separator thoroughly removes oil and water from the compressed air
The automatic condensate discharge valves prevents condensate from penetrating into the compressed air circuit (low servicing efforts)

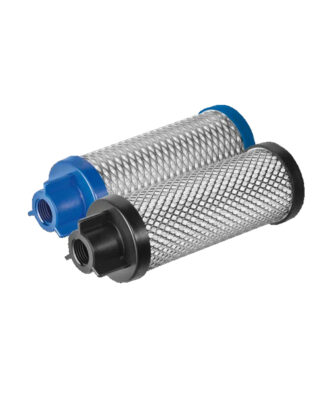

The large sintered bronze filter, filtering particles of 5 micron size, has a long life time and is easy to clean
Sturdy metal housing, making the combi fine filter unit perfectly suitable for temperatures of up to 120° C (248° F)
Air inlet: 1/2 inch
Two outlet valves: 1/4 inch
The pressure regulator with gauge allows easy pressure adjustment
Specifications
Air inlet: G 1/2 int.
Operating inlet pressure: 15.0 bar (225 psi)
Operating outlet pressure: 10.0 bar (145 psi)
Air flow rated at 6 bars/87 psi: 3600 Nl/min (129.6 cfm)
