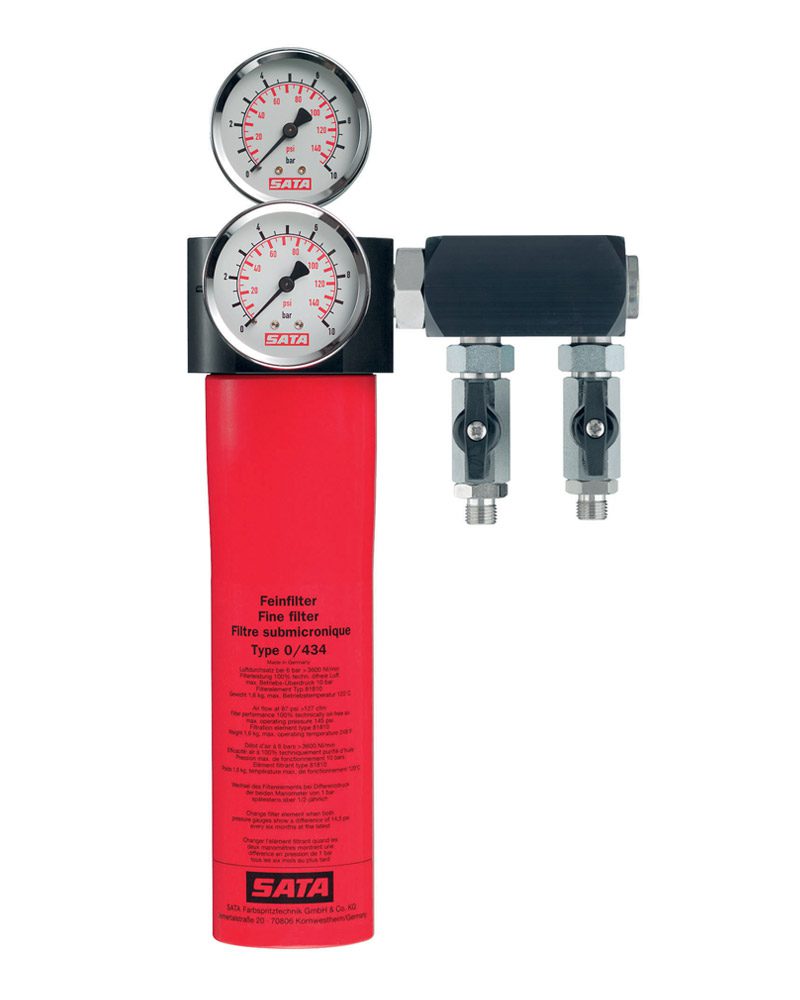

SATA 0/434 Fine Filter with Two Air Outlets (92239)

Description

SATA 0/434 Fine Filter with Two Air Outlets (92239)

• The microfiber fine filter filtrates particles of 0.01 micron size, ensures a filtration degree of 99.998 % (100 % technically clean air) and thus prevents bad paint jobs and expensive redoes
• The saturation degree of the fine filter can be read at the dual gauge
• Very high air flow: 3,600 Nl/min at 6 bars (130cfm at 90psi)
• Sturdy metal housing, making the combi fine filter unit perfectly suitable for temperatures of up to 120° C (248° F)
• Air inlet: 1/2 inch
• Two outlet valves: 1/4 inch

Specifications

• Air inlet: G 1/2 int.
• Operating inlet pressure: 10.0 bar (145 psi)
• Operating outlet pressure: 10.0 bar  (145 psi)
• Air flow rated at 6 bars/87 psi: 3600 Nl/min (129.6 cfm)
• Max. surrounding temperature: 120°C
