    SATA 0/424 Filter/Pressure Regulator with Two Air Outlets (92221)

    Our Price

    £600.8

    Our Price: £600.8
    Trade: £751.00
    VAT/TAX: £120.16
    Total: £720.96
    Quantity
    View Parts

    Description

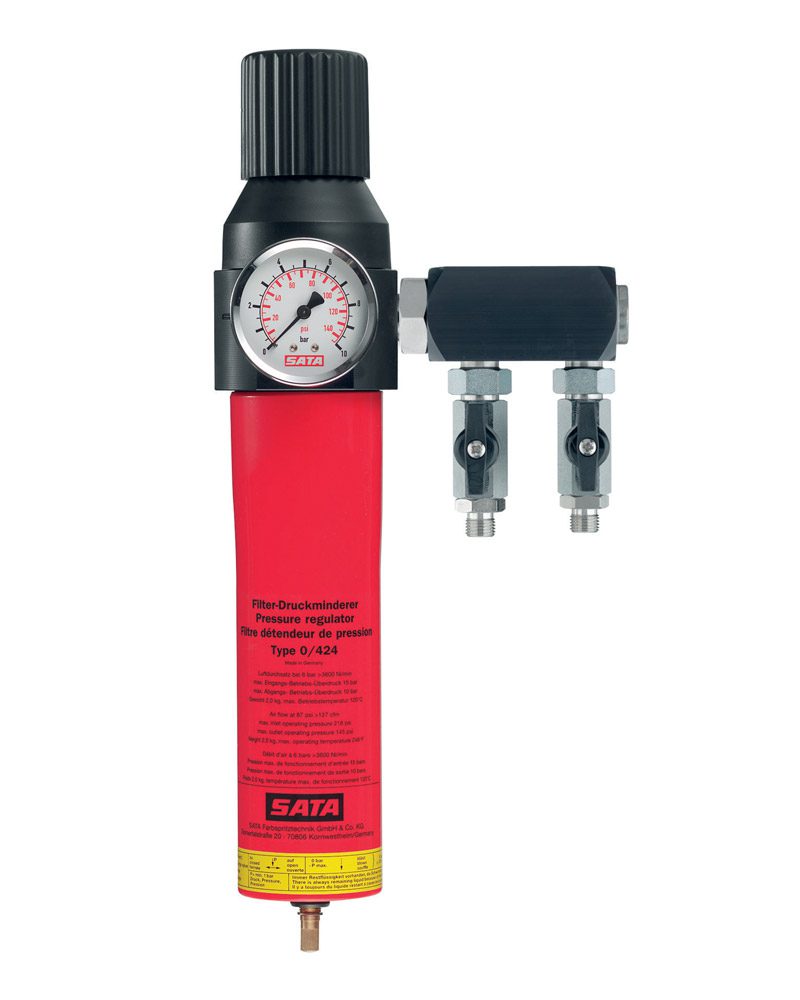

    SATA 0/424 Filter/Pressure Regulator with Two Air Outlets (92221)

    • The cyclone separator thoroughly removes oil and water from the compressed air
    • The automatic condensate discharge valves prevents condensate from penetrating into the compressed air circuit (low servicing efforts)
    • The large sintered bronze filter, filtering particles of 5 micron size, has a long life time and is easy to clean
    • Sturdy metal housing, making the combi fine filter unit perfectly suitable for temperatures of up to 120° C (248° F)
    • Very high air flow: 3,600 Nl/min at 6 bars (130cfm at 90psi)
    • Air inlet: 1/2 inch
    • Two outlet valves: 1/4 inch
    • Supplied with wall mounting bracket
    • The pressure regulator with gauge allows easy pressure adjustment

    Specifications

    • Air inlet: G 1/2 int.
    • Operating inlet pressure: 15.0 bar (225 psi)
    • Operating outlet pressure: 10.0 bar  (145 psi)
    • Air flow rated at 6 bars/87 psi: 3600 Nl/min (129.6 cfm)
    • Max. surrounding temperature: 120°C

    Additional information

    Weight 3 kg
