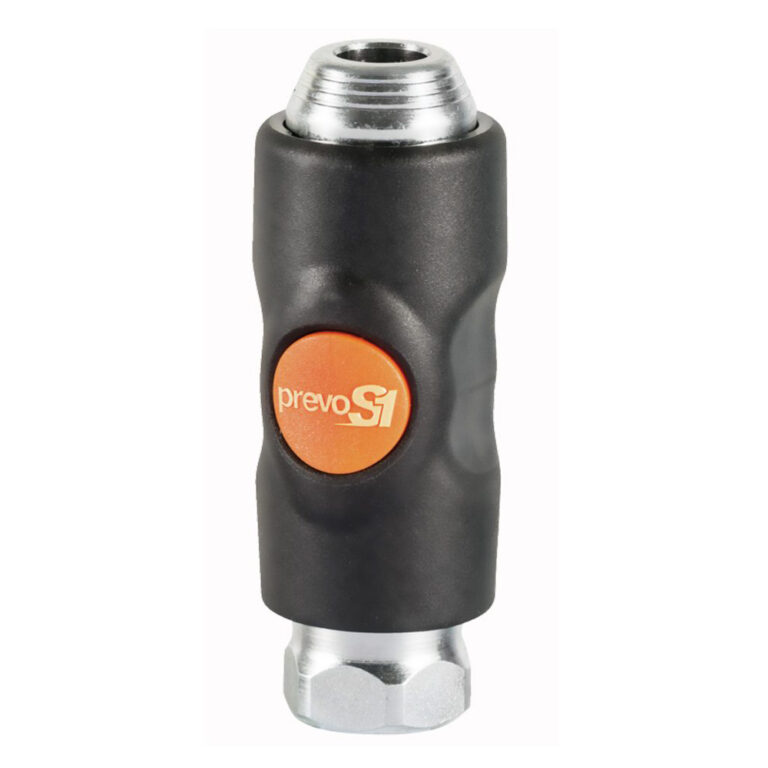

Prevost BSI 06 Female British/Standard (1/4″, 3/8″ and 1/2″ Available) Coupling/Receiver

Premium couplings from Prevost’s Prevo S1 range for use with all industrial compressed-air applications.

With an innovative and highly efficient patented design, the flow rate is optimised for maximum efficiency and minimum loss of power.

The seal is reliable enough for the manufacturer to offer a three-year guarantee of no leaks as the push button mechanism automatically vents pressure and disconnects. Simple, solid and safe to use, this securely eradicates any risk of hose whip and disconnection on impact.

The coupling body is made of a reinforced composite that’s super heavy-duty. It has very high impacts and is crush-resistant, as demonstrated in the video.

Lightweight, compact and ergonomic in form, the surface is warmer to the touch than metal couplings and helps eliminate accidental scratches that cost labour and material.

Prevost’s Prevo S1 range covers various types of couplings in different profiles and sizes.

European, British, ISO 6150 B, ISO 6150 C, Truflate, and ARO 210 profile couplers are available in 1/4″, 3/8″, and 1/2″ BSP.

Technical Specifications

• Temperature: -15°C + 70°C
• Construction: Composite
• Use: Pneumatic tools
• ID Passage: 6 mm
• Pressure: P.N. 12 bar
• Colour: Black / Orange
• Flow rate at 6 bar: Flow rate : 750 l/min – DP = 0.6 b
• Brand: Prevost
• Thread: 1/4″ or 3/4″ or 1/2″ BSP
• Thread Gender: Female
• Profile: British/Standard PCL
