Description

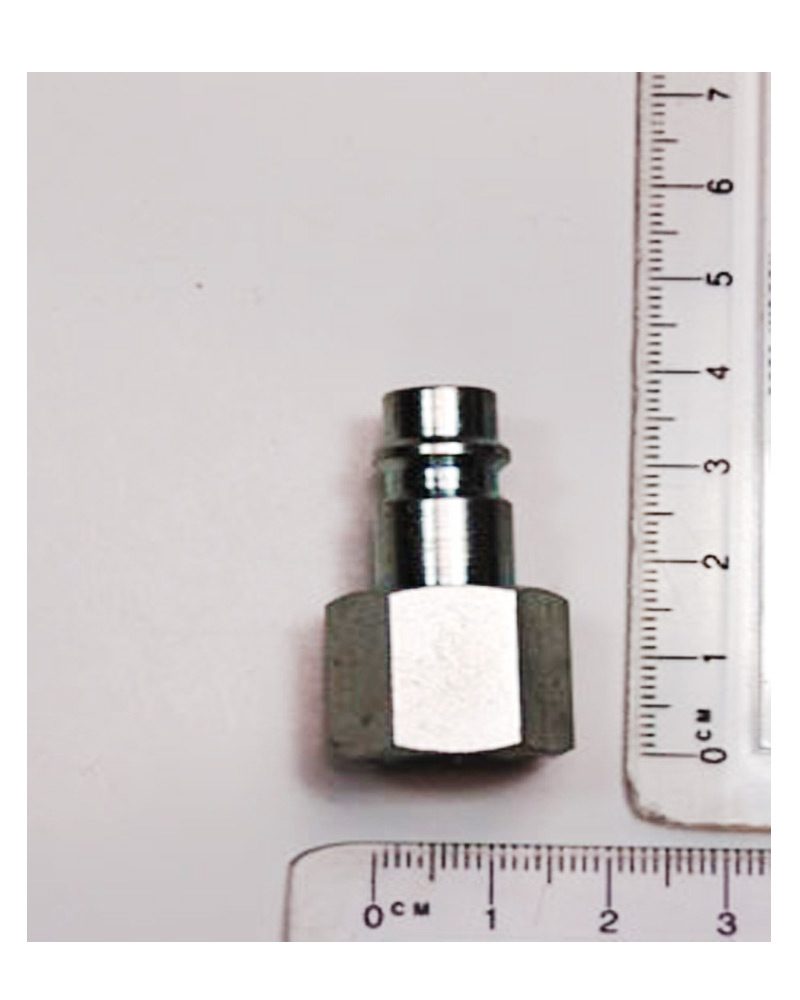

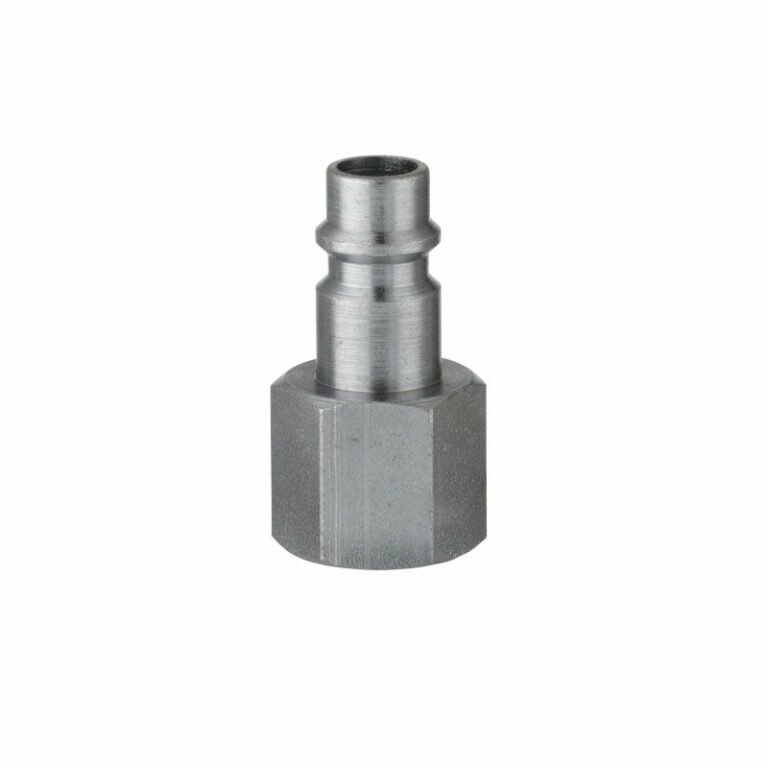

PCL 1/4″ BSP Female HVLP/Euro Tailpiece MAS2513S (was AA7106)

PCL XF 1/4″ BSPP Female Adaptor – AA7106 is part of the high flow range

XF Adaptors, are also known as as Euro adaptors. They are manufactured by PCL in Sheffield, the UK’s leading coupling and fitting maker. Not only are they 100% genuine, they also boast many fantastic features, including:

• For use with XF couplings
• Corrosive resistant finish
• Case hardened for longer life

XF 1/4″ BSPP Female Adaptor Specifications:

• Coupling style: Adaptor
• Thread type: Female
• Thread size: 1/4″
• Nominal Bore: 7.4mm
• Flow rate: 2200 I/min @ 6 bar
• Maximum working pressure: 35 bar / 508 psi
• Temperature range: -40°C to 100°C
• Material: Steel
• Interchanges with:
  Rectus 25/Rectus 26, CEJN 320/326 & 320/326 eSafe, Legris 25/Legris 26, JWL 510/520/530/540/550/560/570, Tema 1600/1625, Norgren 234/238, Schrader Intercheck 35, Parker 35, Prevost ESI/ERC/ESC/ISC 07, OETIKER SC C, Hanson Auto-Flo 24, Kee 072/075 , Ludecke ES/ESI/ESI*/ESIS/ESIS*/ESPN

• Brand: PCL
• Thread: 1/4″ BSP
• Thread Gender: Female
• Profile: HVLP/Euro
