Mirka DEXOS 1217 M AFC Dust Extractors with 4m Hose (MIX12171221UK)

Mirka DEXOS 1217 M AFC

M-Class dust extractor

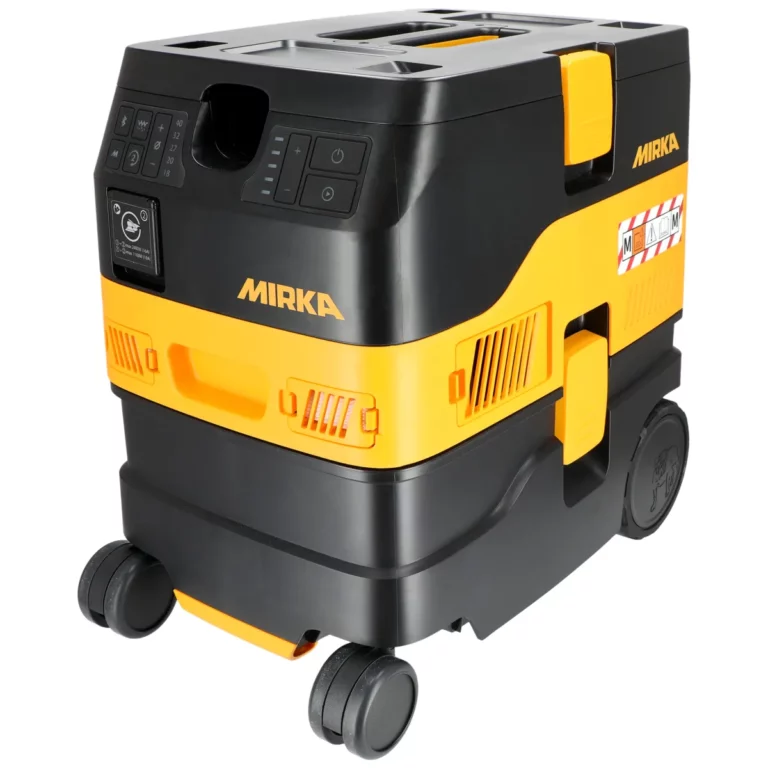

Mirka® DEXOS is a completely new dust extractor with a compact and ergonomic, user-friendly design. Designed from the ground up to be part of Mirka’s next generation of power tools, the Mirka DEXOS features numerous clever touches to make sanding easier and efficient for the operator. The new Mirka DEXOS 1217 M is available as an M-Class dust extractor and a HEPA filter can be fitted.

Features

• Brushless motor (Increased efficiency – less energy – longer lifetime)
• Dust Class M (retains 99,9% of dust) / Automatic Filter Cleaning
• Cable, hose & sleeve storage inside top lid
• Compact & ergonomic – easy to carry and clean
• Simplified change of dust bag + easy replace filters
• User-friendly foot operated brake pedal
• Autostart functionality on 2 sockets

Dedicated to the finish.

For a complete dust-free sanding process, simply connect a powerful Mirka sander to the dust extractor with the supplied hose and begin sanding with Mirka’s effective abrasives, including the ground breaking Mirka Abranet net abrasive.

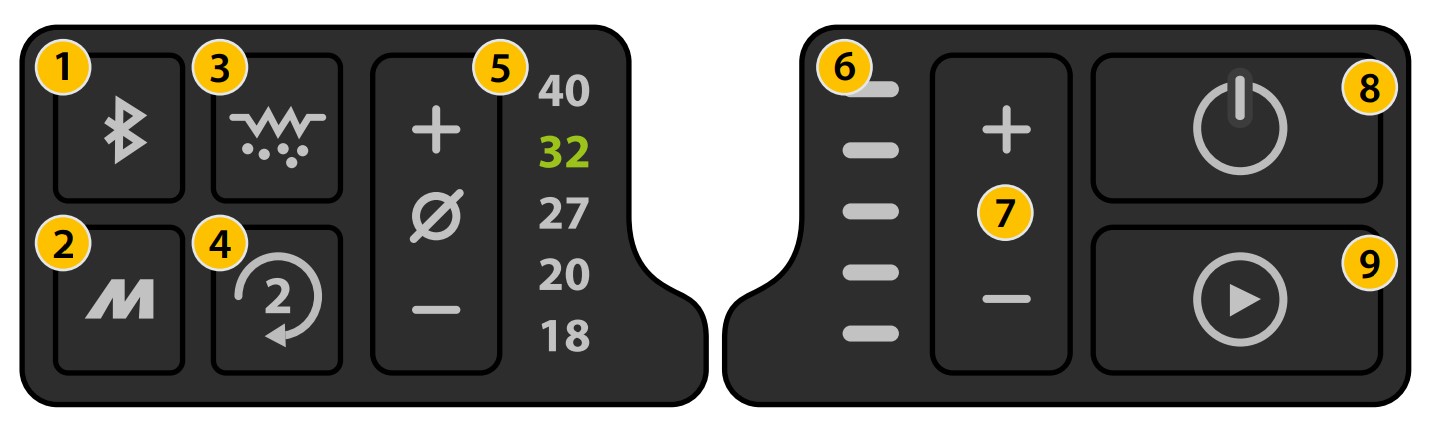

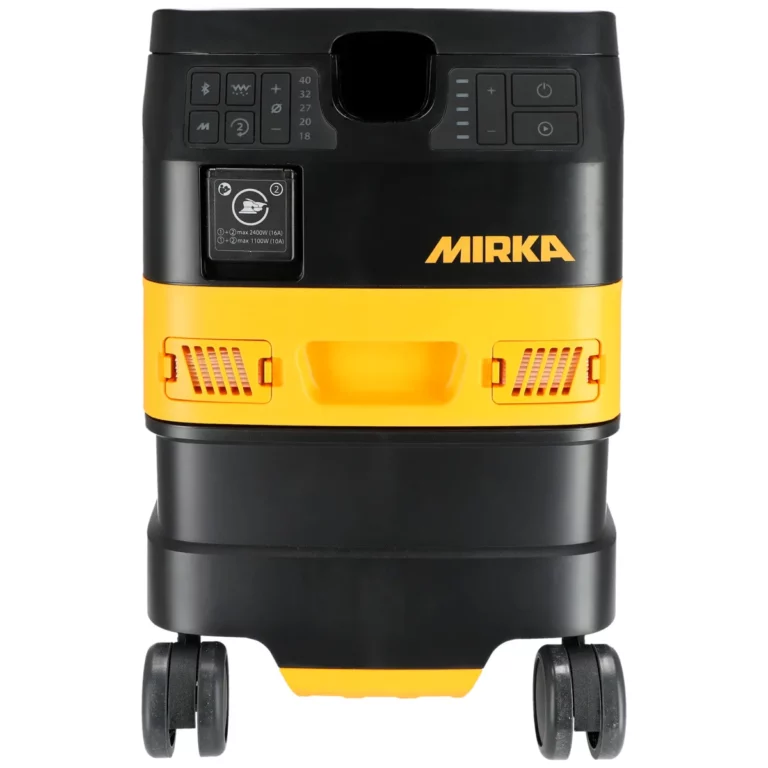

1. Bluetooth pairing 2. Multifunction button 3. Auto-Filter Cleaning 4. Autostart from socket 2 5. Hose size setting (+diam.) 6. Power-level indicator 7. Power level adjustment 8. On / Standby (Autostart) 9. Start button

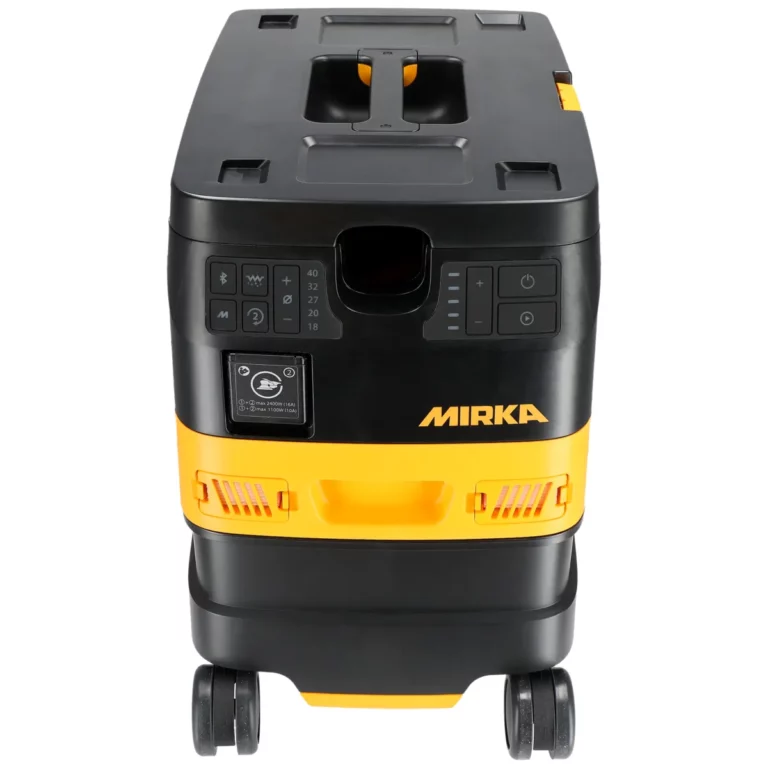

With a powerful and long-life brushless electric motor, the Mirka® DEXOS 1217 M AFC is quiet yet impressive. Power level is easily selected from the backlit control panel in the front of the dust extractor, together with hose diameter adjustment, auto-start functionality on two sockets and Bluetooth pairing. A configurable multifunction can be customised via myMirka app.

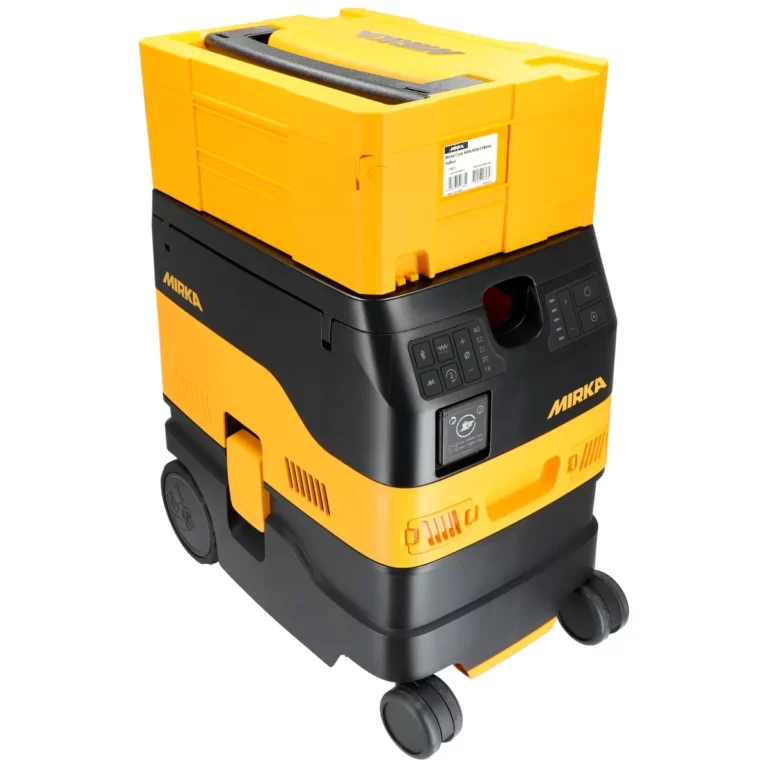

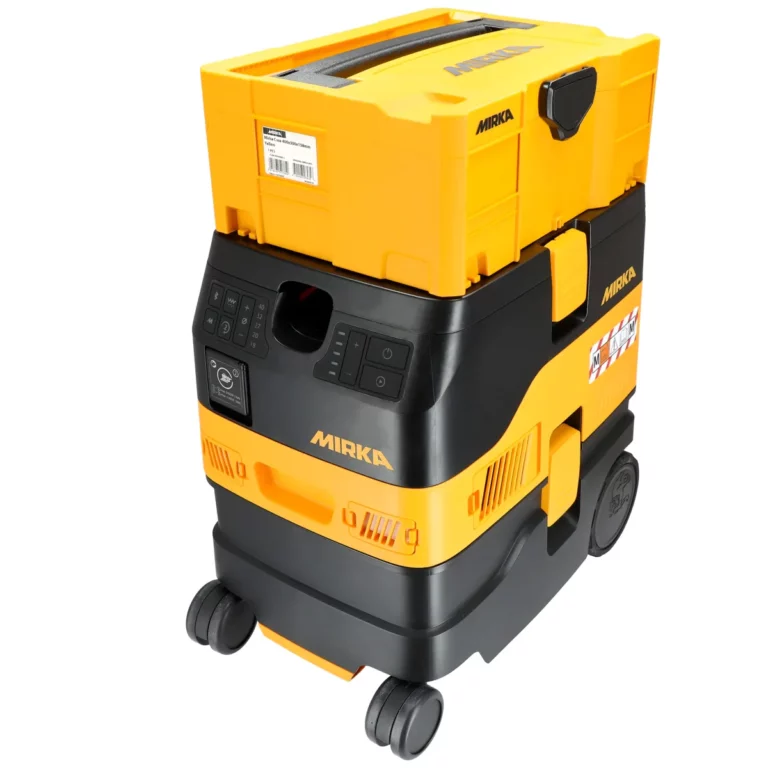

Handling the new Mirka DEXOS 1217 M could not be easier. The easily manoeuvrable and easily cleaned, 13-kg Mirka DEXOS contains space for storing the included 4m hose and cables during transport and it is compatible with Mirka Case, Toolbox, and existing Mirka hoses. The dust extractor includes two power outlets for tools and it is suitable for both wet and dry use. The dust bag in the 17-litre container = can be changed or removed without the need to unclip storage boxes fastened on top of the dust extractor. When transporting the DEXOS, it can be secured in place with a brake pedal.

Technical Specifications

• Product code (+ hose 4 m) MIX12171221
• Mains Voltage 220 – 240
• Power / Total mains load 1200 W / 3600 W
• Max. airflow (l/s) * 42 l/s
• Max. Vacuum (kPa) 25 kPa
• Sound pressure level LPA 77.7 dB(A)
• Weight 13 kg (28.7 lbs)
• Container capacity 17 l

The Mirka DEXOS features Automatic Filter Cleaning and a push-to-clean function can be triggered. An airflow sensor indicates when the flow rate is below optimal. In addition, a wearable remote-control bracelet can toggle functions and relay information, about hot motor/PCB alarm and shut down cause, to the operator.

Technical attributes

• Antistatic Yes
• Cable Length 7.5 m
• Dust Class M
• Dust Container Volume (l) 17.0 L
• Height 480 mm
• Length 481 mm
• Mains Frequency (Hz) 50/60 Hz
• Noise Level, LpA (dB) 77.0 dB
• Power Input (W) 1200 W
• Air flow volume (l/min) 42.0 l/min
• Weight 14.6 kg
• Width 332 mm

Application

• Dust Extraction
