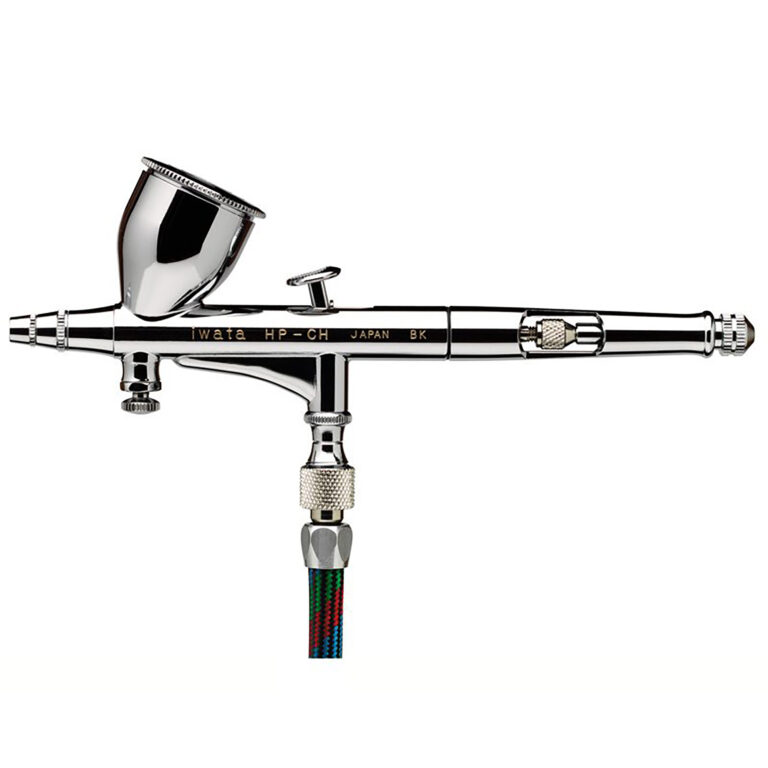

Featuring the ultimate in air control directly at the nozzle with Iwata’s new Micro Air Control (MAC) Valve Technology, this Hi-Line Series brush doesn’t just change air pressure instantly – it changes the way you airbrush.

Designed for artists who need extreme control of detailed spraying, this brush uses larger diameter threads on the nozzle than the High Performance Series.

This makes the nozzle much stronger when tightening it onto the airbrush and ensures better centering of the nozzle when it screws onto the airbrush body.

This Hi-Line Series brush is now made with Teflon™ needle packing, a dual-purpose cutaway, pre-set handle and one-piece auxiliary lever/needle chucking guide.

Features a 0.3-mm nozzle and a large 1/3 oz. (9 ml) tapered gravity-feed cup
The larger nozzle and needle makes this an ideal airbrush for spraying a variety of paints from watercolors to solvent-based automotive paints

The HP-CH is excellent for these applications:

Fine art
Illustration
Custom Automotive
Ceramics
Model Painting
Thin Cosmetics
Body Art

Technical Specifications

Feed: Gravity
Fluid Nozzle: 0.3mm
Needle: 0.3mm
Type: Double Action
Capacity: 7ml
Thread Size: Fine to 1″ (25 mm)
External Needle Reg: Standard

Airbrush Warranty

All Iwata and Neo for Iwata airbrushes are warranted by Anest Iwata-Medea against all manufacturing defects of materials and manufacture or workmanship. Neo for Iwata Airbrushes are warranted for a period of 5 years and all other Iwata Airbrushes is extended by the Airbrush Company Ltd to 10 years in the UK. Your 10 year extended warranty is only valid with the Airbrush Company Ltd if you have purchased from an authorised UK reseller and you present your proof of purchase. Should you have the need to make a claim, or consider you have a warranty claim, then please contact The Airbrush Company Ltd for the claims procedure.

Please note, this warranty does not cover needles, nozzles, packing and o-rings, since these parts need to be replaced occasionally due to normal wear. It also does not cover damage caused by negligence, airbrushes that have been altered in any way, cleaning or servicing.

If you have purchased your Iwata Airbrush from a dealer in another country, your warranty will be valid in that country and you will need to return it to the vendor for repair or replacement under warranty.
