Description

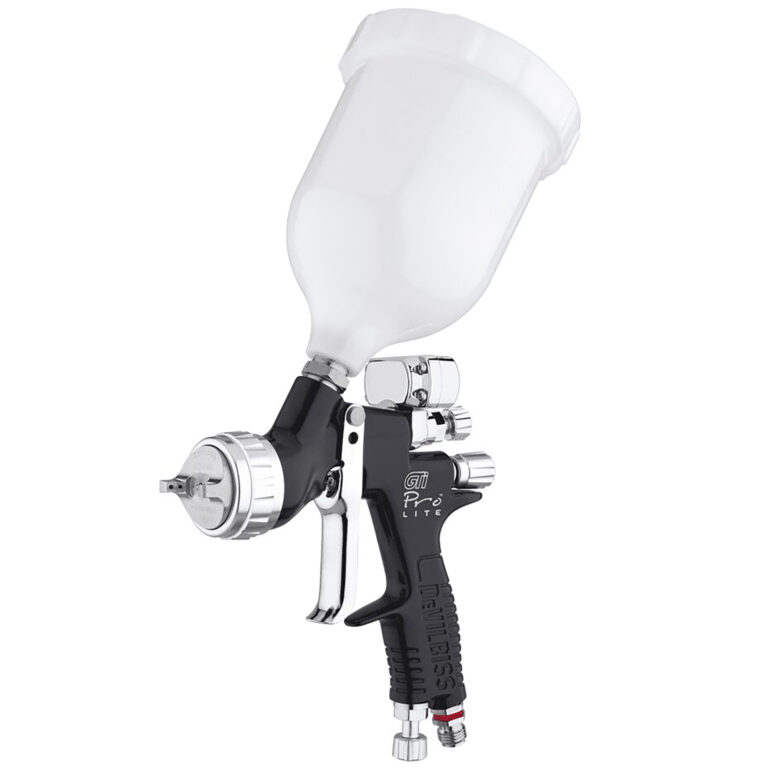

DeVilbiss GTi Pro LITE Digital Gravity Feed Spray Gun

• Developed for busy professional painters needing the ultimate in quality finishes.
• Ergonomic gun body design.
• Ultra high flow fluid tips provide superb versatility across a range of viscosities.
• Revolutionary air valve design gives a smoother feel for even greater air and paints control to ease fade-outs and blend-ins.
• Simplified, user-friendly components provide easy cleaning and maintenance.
• Precision engineered using lightweight and durable alloy components for a tough spray gun that is 25% lighter than the GTi Pro Digital.
• Enhanced ergonomics combined with the GTi Pro’s legendary fit and feel ensure incredible handling and balance.
• A coaxial linear air valve eliminates the need for separate air and fluid control valves for smooth, kick-free trigger action, easy cleaning and maintenance.
• Four advanced atomisation technology air caps for perfect paint performance in all climatic conditions.

PLEASE NOTE – there are four air caps to choose from that affect the way that the gun sprays. These are:

T110 – Clearcoat (higher solids) and super smooth finishing

• High performance Trans-Tech atomisation technology best suited to clearcoating and glosses.
• This aircap brings new levels of performance, particularly in the application of the latest compliant clearcoats.
• It also scores highly in its ability to eradicate dimple defects that can occur with low solvent clearcoats; does not have the same transfer efficiency of the other caps though.
• As OEM finishes are not that smooth, does not always suit such as when using lower solid technology.
• Particularly suited to classic car finishers or industrial applications as it applies like glass.
• Air consumption: 9.4cfm- 265l/min.

TE20 – Faster flow gloss/lacquer

• All round gloss / clearcoat gun.
• Flow rate and fan pattern lend themselves towards a wetter application style.
• Compliant trans-tech high transfer efficiency (but not HVLP)
• Fluid tip sizes available: 1.2, 1.3 and 1.4.  For 2K gloss / clear the 1.3 is by far the most popular choice and is recommended by the majority of paint manufacturers for their HS 2K products.
• Atomisation Technology: High Efficiency
• Air Flow L/min: 360 (12.7 cfm)
• Fluid g/m: 170 – 200
• Pattern Height: 285 – 300mm

HV30 – HVLP Max Transfer efficiency

• This aircap delivers maximum transfer efficiency rates so is particularly suitable for waterborne basecoat application.
• Air Flow L/min: 460 (16.3 cfm)
• Fluid g/m: 160 – 190
• Pattern Height: 300 – 325mm

TE10 – Solvent & all rounder

• Trans-tech high transfer efficiency, not HVLP and best suits solvent basecoat – though can be used for waterbased and also lacquer – this is a good all rounder to do multiple tasks.
• Suits basecoat application in a more traditional (non HVLP) style.
• Particularly suits solvent basecoats however is sometimes favoured / recommended by some paint companies for waterborne basecoat application.
• This is a ‘Trans-tech’ air cap, which is compliant but is not HVLP. This means the spray pattern is more eliptical (squat/rounded) than the open flat (wide fan width) pattern found on the H1 air cap. See info pack button above for more info.
• Atomisation Technology: High Efficiency
• Air Flow L/min: 270 (9.5 cfm)
• Fluid g/m: 160 – 190
• Pattern Height: 290 – 310mm

The boxed kit includes:

• The complete anodized gun – Available in colours; black or blue
• Digital Guage (DGIPRO-504-BAR-K)
• Gravity cup with paint filter
• Set of four coloured identification rings
• Torx driver/screwdriver
• Cleaning brush
• Combination spanner
• Instruction/spare parts manual

Technical Specifications

• Cup Capacity: 560ml
• Weight (gun only): 446g
• Weight (gun & cup): 629g
• Air Cap: Plated Brass
• Air Cap Retaining Ring: Clear Anodised aluminium
• Fluid Tips: Stainless Steel
• Fluid Needle: Stainless Steel
• Air Inlet Thread: 1/4” Universal

Please see the process chart for more information on what this gun is best used for.

– For 3M PPS adapter select No.3 (16033) from the model part number dropdown. Please follow the links below for selected adaptor.

3M PPS Preparation System Adaptor Series 1.0 (Choice of 25 Adaptors) (16032 / 16759)

– Devilbiss (DPC-43)

https://www.spraygunsdirect.co.uk/product/devilbiss-dekup-system-adaptor-choice-of-8-adaptors/

– SATA (125252)

SATA RPS Adapters for non-SATA Spray Guns (125211 / 147272)

– Colad No.14 (9370A14)

https://www.spraygunsdirect.co.uk/product/colad-snap-lid-adaptor-choose-in-drop-down-refer-to-tech-for-right-one/
