Description

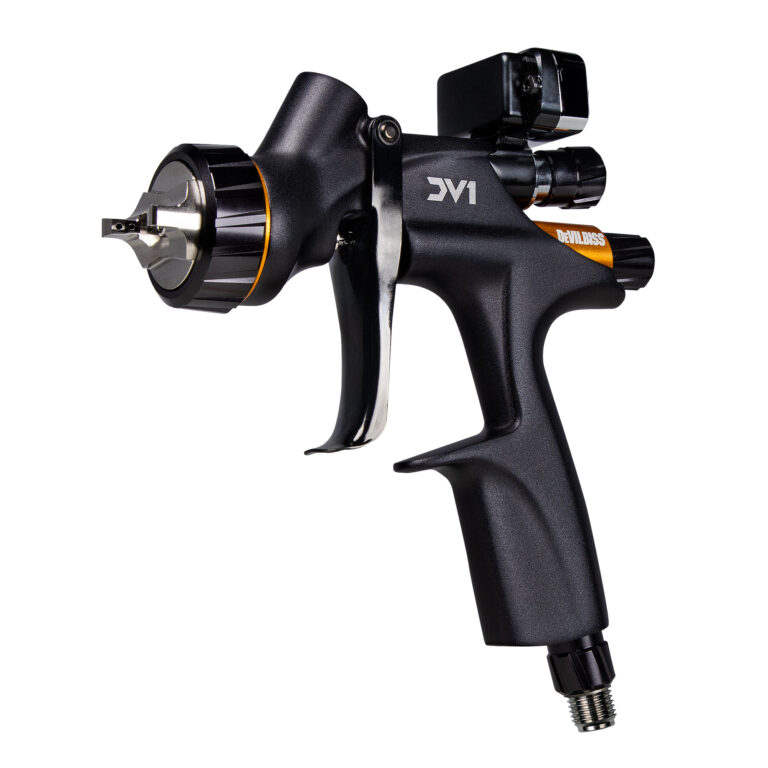

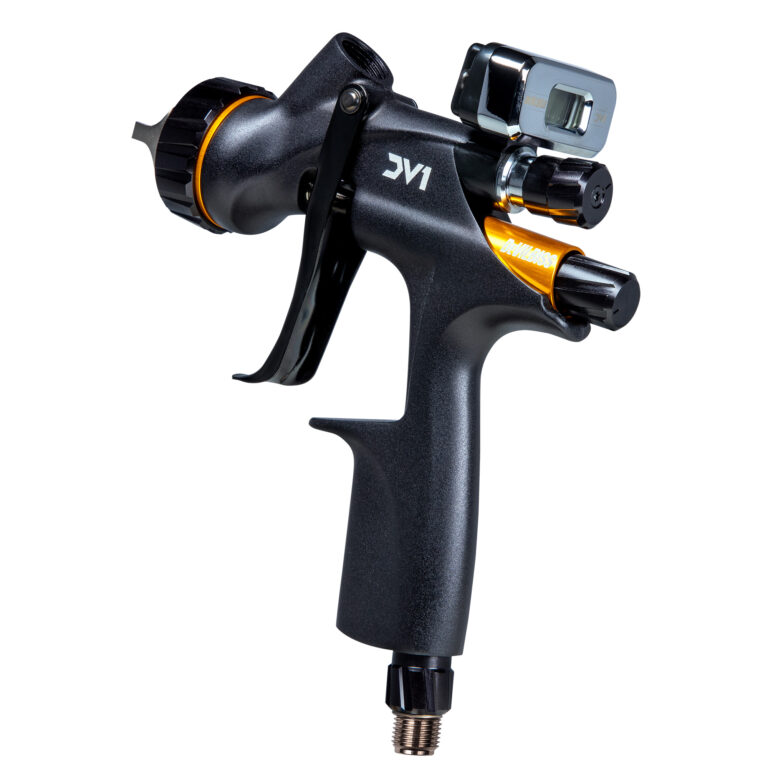

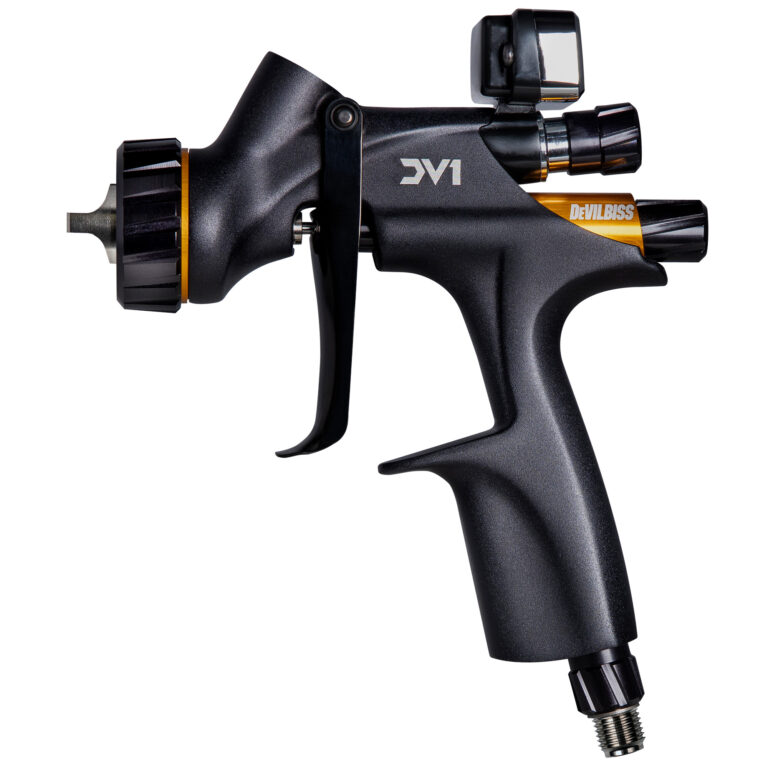

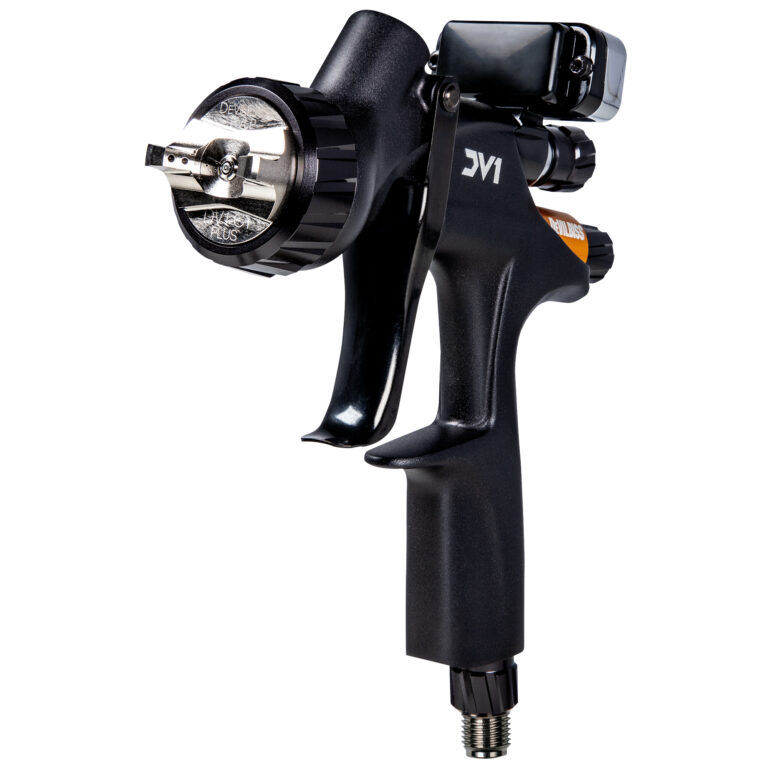

DeVilbiss DV1 Digital HVLP Clearcoat Spray Gun

Our opinion – Cutting edge design which gives an incredibly uniform mist across the whole span of the spray fan, highly respected.

EXPERIENCE THE NEXT GENERATION OF CLEARCOAT APPLICATION

Introducing the DV1 Clearcoat Spray Gun: the latest addition to the DV1 family of revolutionary spray guns. This gun provides consistency and optimization in spraying the leading clearcoats in the market today.

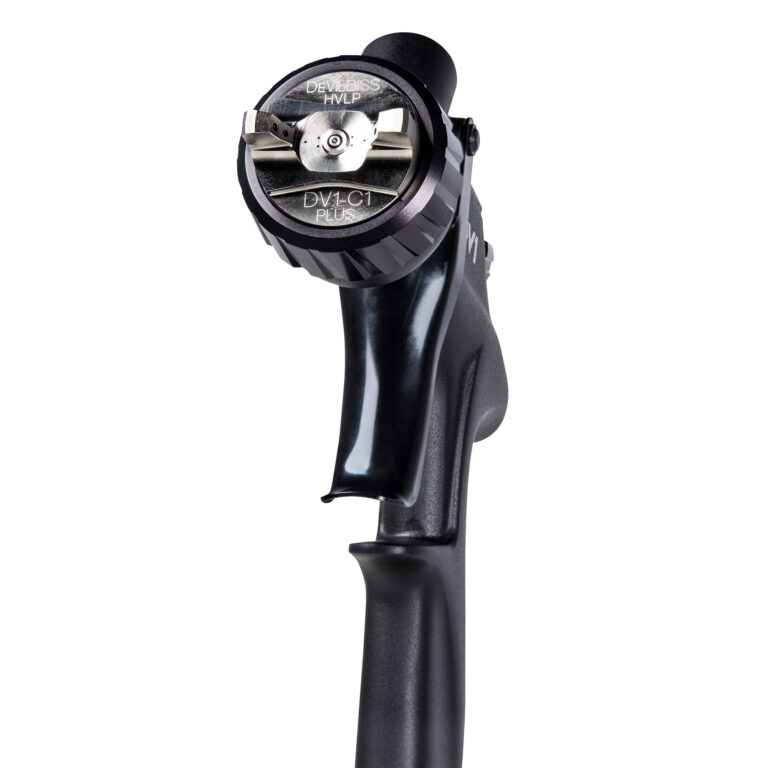

DV1 Clearcoat Spray gun features the all-new DV1-C1 PLUS Clearcoat Air Cap, delivering superior high efficiency performance for a flawless finish. This air cap distributes even, super-fine particles in a consistent, homogeneous pattern to lay the clear flat, allowing painters to easily wet up a surface while minimizing runs and sags on vertical panels. The all-new fluid tip design increases fluid flow while stabilizing air flow, minimizing material usage and providing significant paint savings.

With a new black matte finish, the DV1 Clearcoat boasts a better grip for easy handling, ensuring maximum comfort on the job, while providing more power for higher productivity.

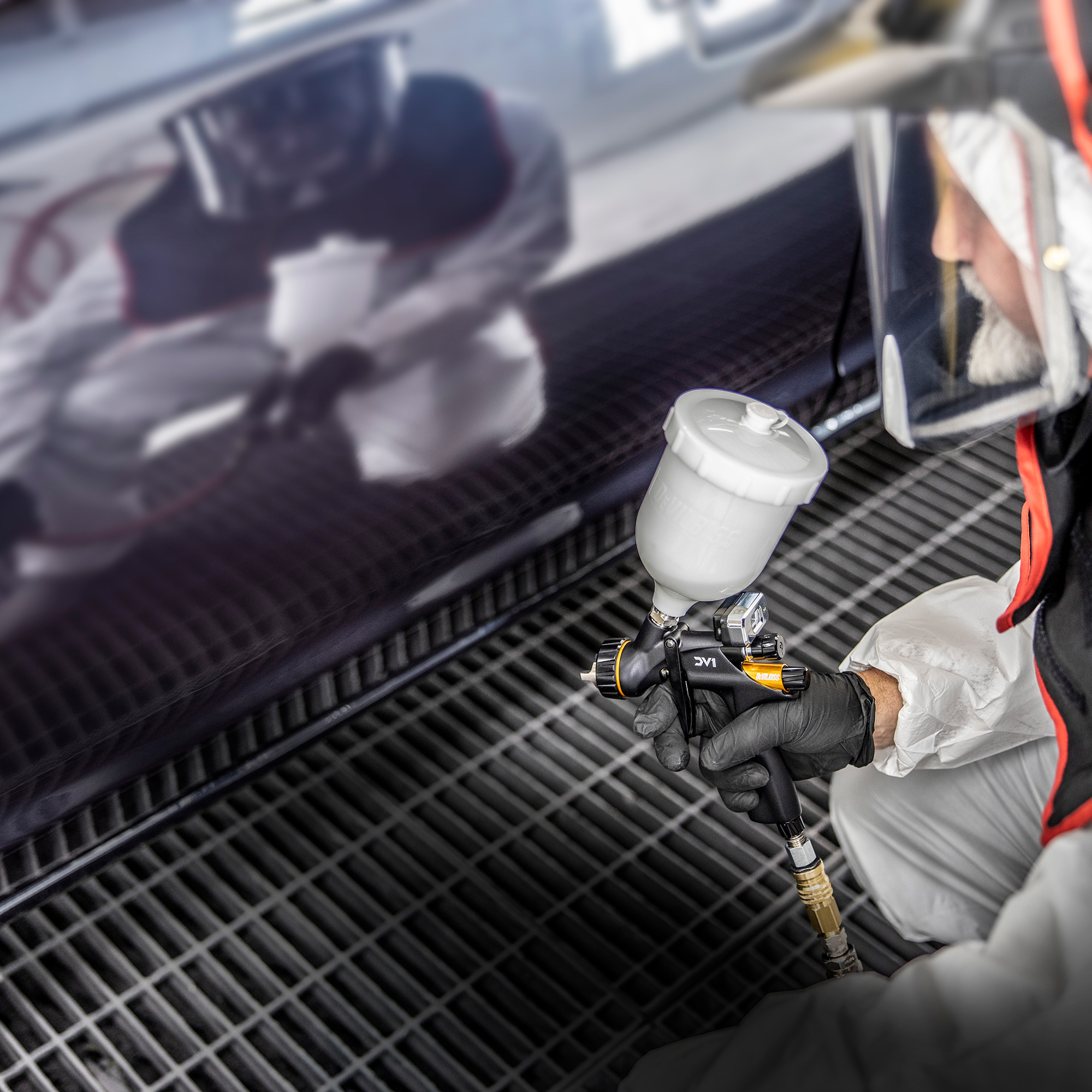

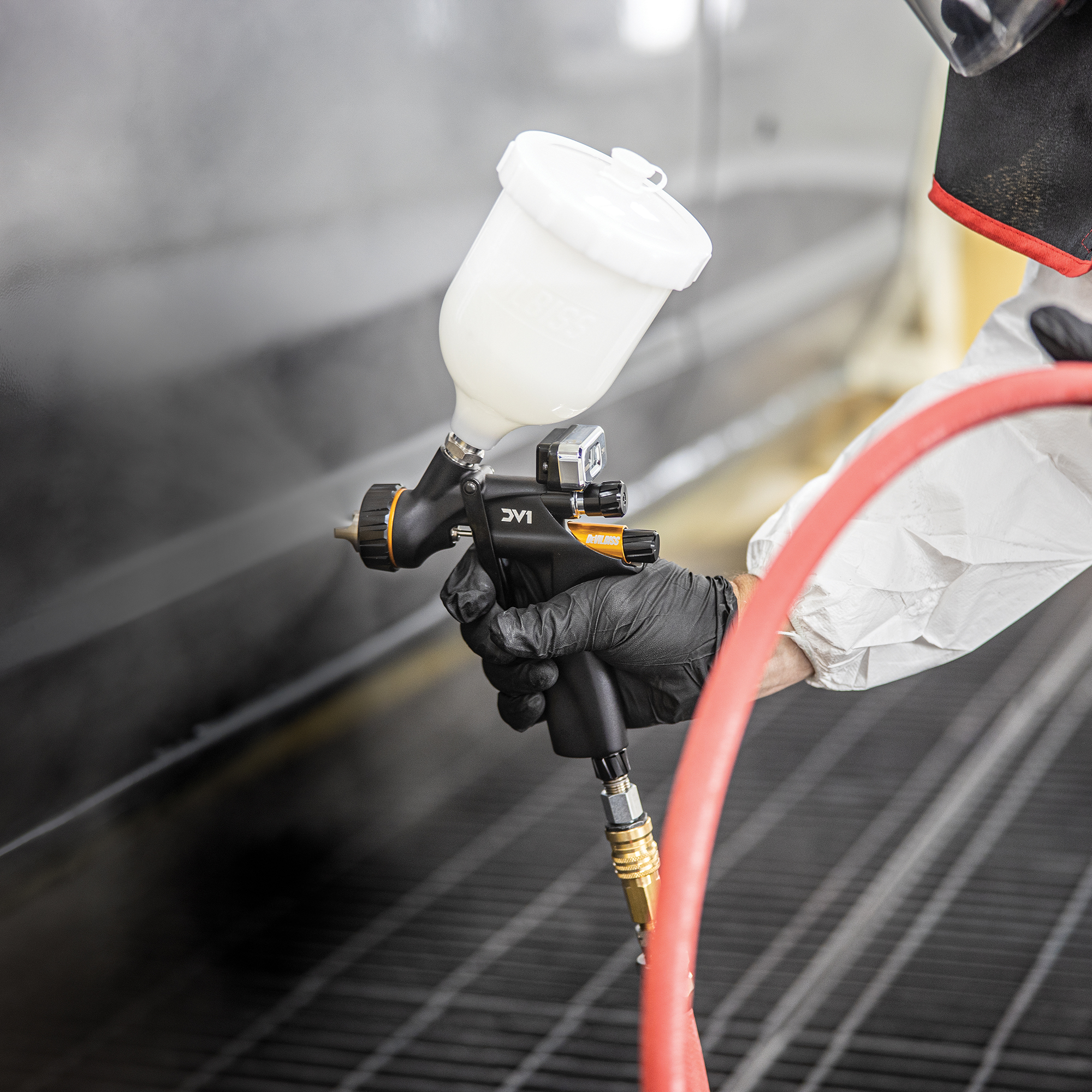

Through faster performance, proven paint savings and superior atomization, the DV1 Clearcoat Spray Gun gives painters the confidence to know that they can achieve a high-quality, glass-like finish every time.

DeVilbiss DV1 Clearcoat boasts comprehensive features that revitalise the spraying process, including

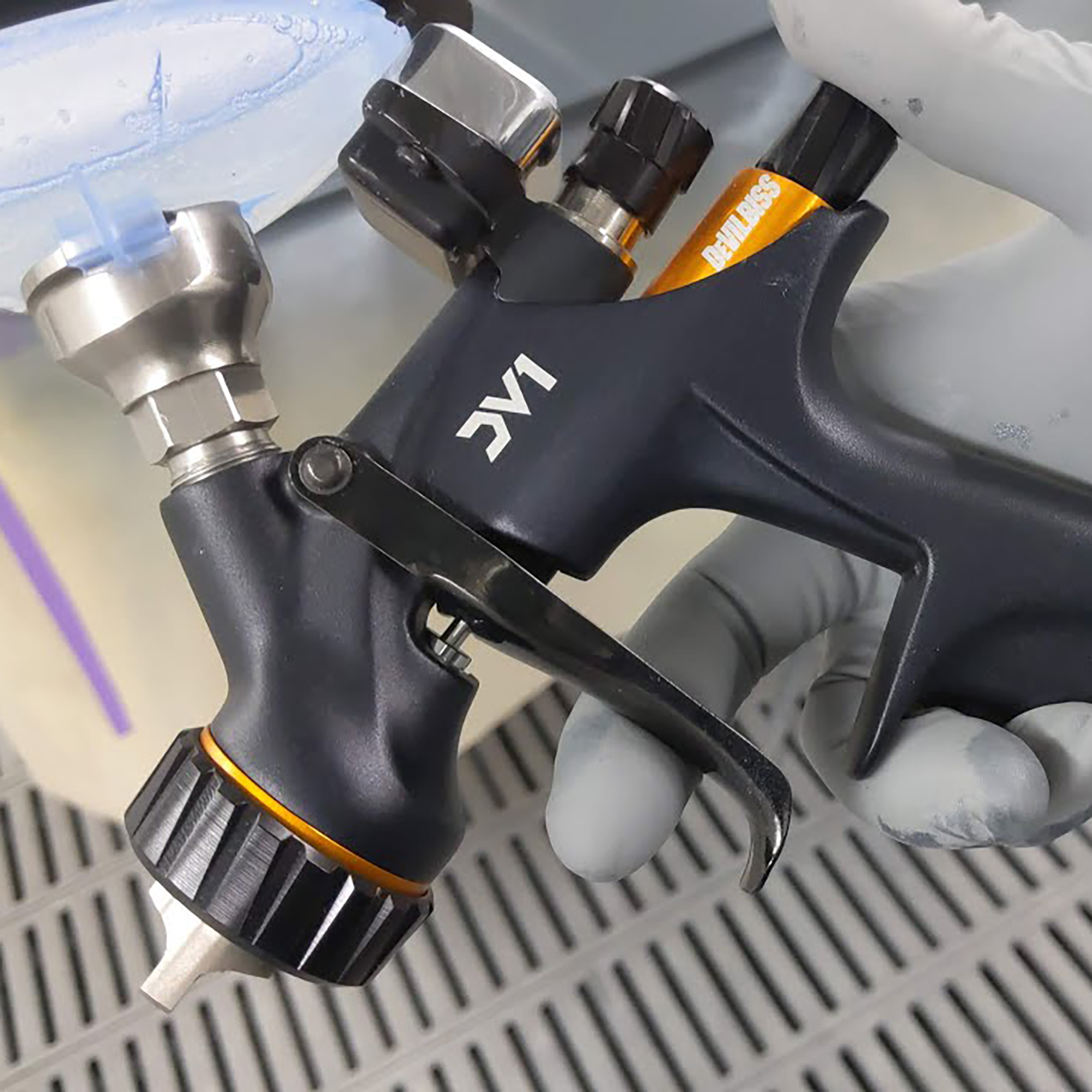

• Silent-action trigger designed to remove sideways and rotary play to deliver a soft, smooth pull
• Quick-release air cap for quick and easy changes and easy access to the fluid tip

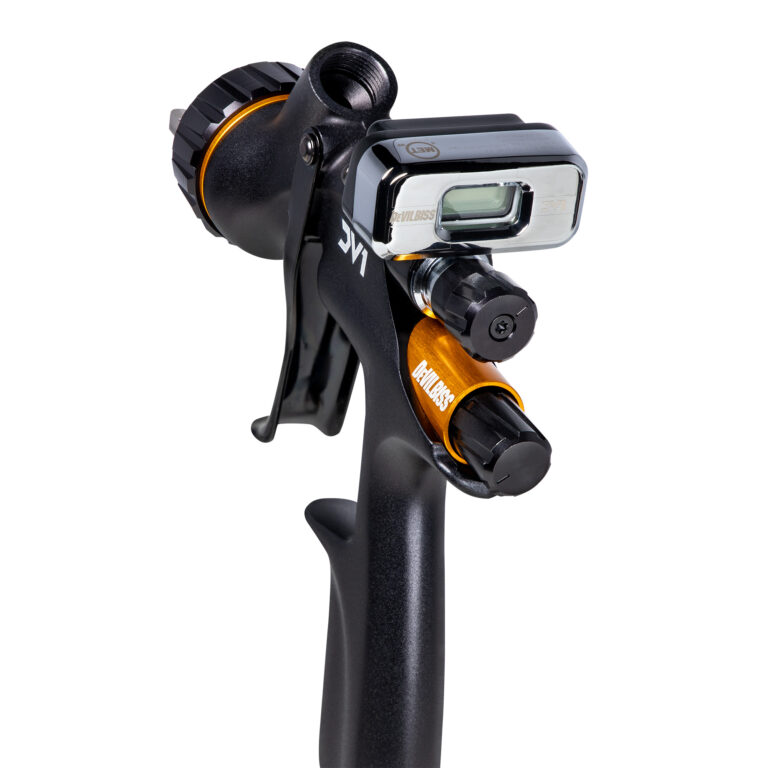

• Integrated digital gauge placed in-line at eye level for quick, easy checking while providing precise inlet pressures for optimal gun performance
• Streamlined gun body with an ultra-comfortable ergonomic fit and feel to provide sprayers balance, optimal control and less fatigue
• Reconfigured air adjusting valve placed in an ergonomic location for more comfort and 12 times the sensitivity for precise air control adjustments and smoother air flow
• Simplified air valve for maximized fluid needle alignment and durability, minimized component wear and easier removal and serviceability

Air Cap

Select the best DV1 Clearcoat air cap based on your paint application , C1+ and C2+ clearcoat air caps provide the right finish with the perfect film build to produce a fine, mirror finish every time.

C1+ Air Cap

The C1+ is a slower, controlled application and it is easy to get a flat, glasslike finish – ideal for lower viscosity clears.

Fan Length = 320-325mm

Air Consumption = 285 l/min (10 CFM)

C2+ Air Cap

The C2+ has a faster application speed and it is easier to achieve an OEM finish with – ideal for higher viscosity clears.

Fan Length = 310mm

Air Consumption = 320 l/min (11.3 CFM)

Features

• Delivers ultimate clearcoat application performance
• Sprays a uniform pattern that lays the clear flat and easily wets up a surface
• Atomizes effortlessly, producing an even distribution of super-fine particles
• Provides maximum comfort and easy use from set-up through the entire spraying process
• Provides improved transfer efficiency and saves time completing each job

Performance Guide

Air Cap Part Number 704434
Air Cap & Type DV1-C1 Plus (HVLP)
Recommended Air Pressure at Digital Gauge 1.5 bar (22 psi)
Air Consumption 285 L/min (10.0 scfm)
Fluid Flow 140 – 190 g/min
Pattern Height 325 mm (12.8 in)
Digital Display in BAR
