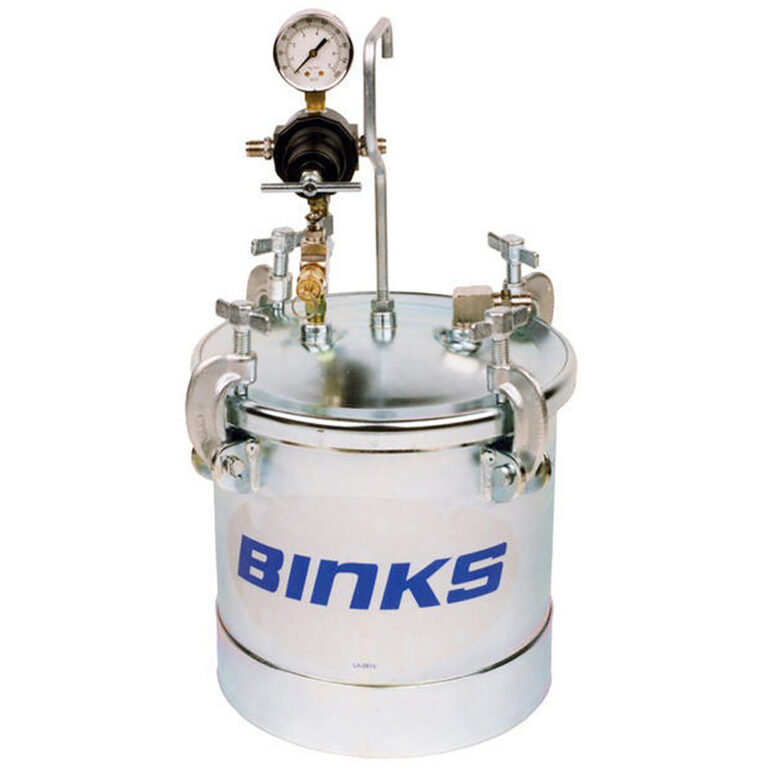

DeVilbiss Binks Pressure Feed Tank

• Zinc-plated tank shell for long life
• Single regulator and gauge to control tank and air pressure
• Zinc plated lid assemblies for solvent based coatings
• Positive 4 point lid clamping for secure operation

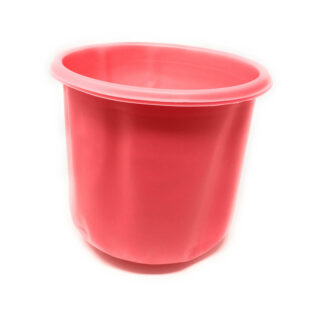

• High density polythylene, tank liners ensure efficient use

Technical Specifications

• Tank capacity: 9.5L
• Maximum working pressure: 5.5 bar (80psi)
• Safety valve set pressure: 5.5 bar (80psi)
• Air inlet size: 1/4″ BSP (M)
• Fluid outlet size: 3/8″ BSP (M)
• Tank shell: SA-620 H.R Steel Zinc plate 2.7mm (8 gauge)
• Tank Lid: SA-414 H.R Steel Zinc plate 4.2mm (3/16″)
• Fluid Tube: Steel, Galvanised Zinc plate
• Air Manifold: CRS Zinc plated
• Fluid Outlet: Steel, Galvanised Zinc plate
• Lid Gasket: Santoprene

Sprayguns available to go with this remote cup are as follows:

• GTi PRO Pressure
• JGA PRO Pressure

Discontinued Sprayguns:

• CVi Pressure
• GTi Pressure

For gun parts please see pressure fed guns.

• Tank capacity: 9.5L
• Maximum working pressure: 5.5 bar (80psi)
• Safety valve set pressure: 5.5 bar (80psi)
• Air inlet size: 1/4″ BSP (M)
• Fluid outlet size: 3/8″ BSP (M)
• Tank shell: SA-620 H.R Steel Zinc plate 2.7mm (8 gauge)
• Tank Lid: SA-414 H.R Steel Zinc plate 4.2mm (3/16″)
• Fluid Tube: Steel, Galvanised Zinc plate
• Air Manifold: CRS Zinc plated
• Fluid Outlet: Steel, Galvanised Zinc plate
• Lid Gasket: Santoprene

Sprayguns available to go with this remote cup are as follows:

• GTi PRO Pressure
• JGA PRO Pressure

Discontinued Sprayguns:

• CVI Pressure
• GTi Pressure

For gun parts please see pressure fed guns.
