    SATA Filter 244 Economical Combi Fine Filter Unit (44404)

    Our Price

    £601.6

    SKU: 44404 Categories: ,
    Our Price: £601.6
    Trade: £752.00
    VAT/TAX: £150.4
    Total: £752
    Quantity
    View Parts
    Compare

    Description

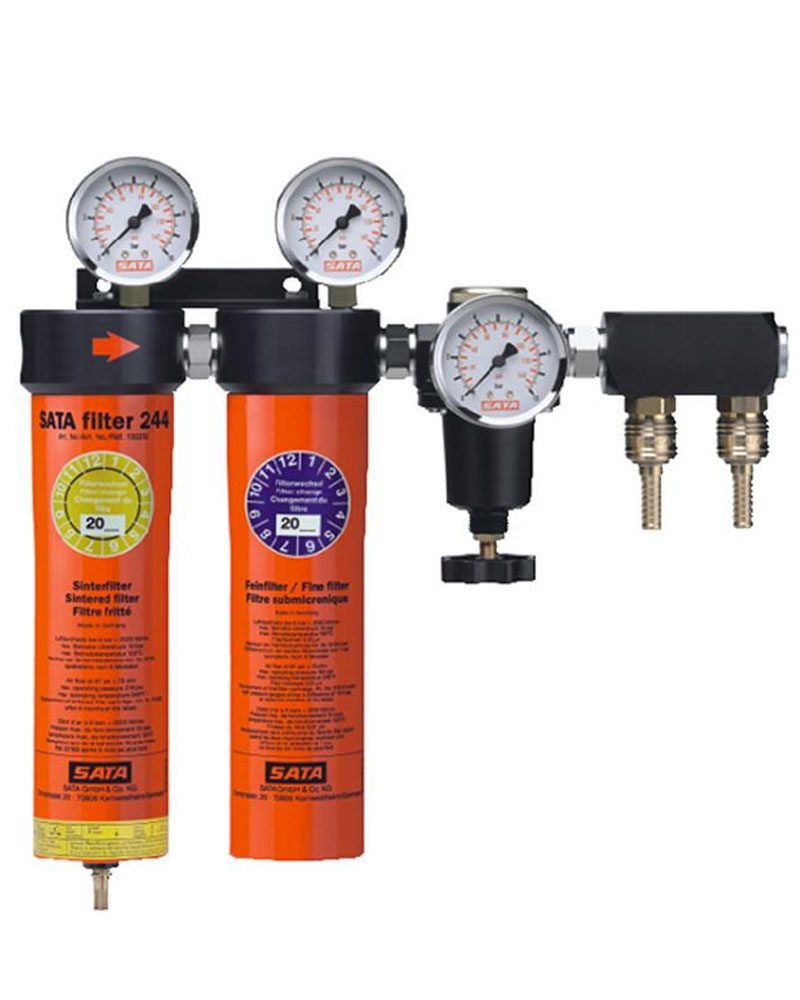

    SATA Filter 244 (44404)

    Economical combi fine filter unit for highest air quality requirements in paint spraying as well as for fresh air supplied breathing systems.

    For installation in paint booths, preparation and other workshop areas.

    Benefits

    • Excellent compressed air quality – removes oil, water and particles
    • Activated charcoal filter cartridge (third stage) removes oil vapours and odours from compressed air for breathing purposes
    • Large, highly functional, durable and wear and tear resistant filter components
    • No desiccant related disadvantages
    • Fully automatic condensate discharge valve
    • 5 micron sintered filter and 0.01 micron fine filter provide 100 % technically clean air
    • 70 cfm (2000 Nl/min) air flow capacity – sufficient air volume to supply two spray booths simultaneously with sprayable and breathable clean air
    Technical Specifications
    • Air inlet: G 1/2 inside thread
    • Maximum inlet operating pressure: 10 bars/145 psi
    • Maximum outlet operating pressure: 10 bars/145 psi
    • Air flow rated at  > 2000 Nl/min (72 cfm) at 6 bars/90 psi
    • Max. surrounding temperature 120° C, with activated charcoal max. 60° C
    • Weight: 4,3 kg
